Horizontal Drilling (Coring) Machine
Reconditioned Type

Use: Concrete Drilling, etc.

Reference Specifications

Please contact us for specifications for current inventory.

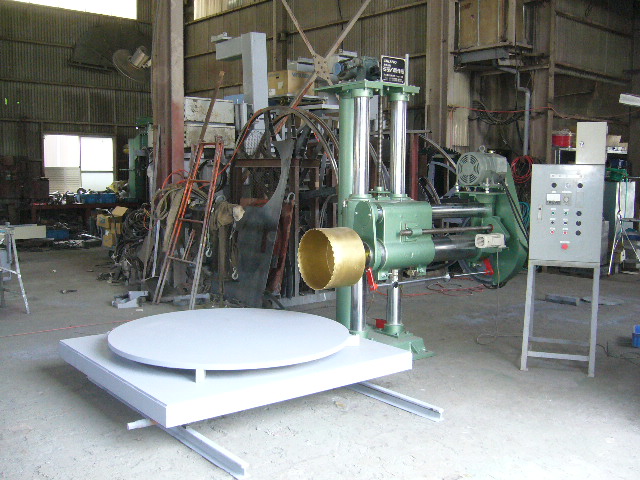

Reconditioned Horizontal Drilling (Coring) Machine
w/ Turn Table for Manhole
Diameter of Diamond Core Bit 150-600mm
Applicable Manhole Size No.0 Oval, No.0, No.1, No.2
Vertical Movement Distance 1050mm
Bit Horizontal Movement Distance 600mm
Bit Feeding Method Auto by motor
Turn Table Size Decided by request.
Motors
  • Main Shaft 7.5kW
  • Vertical Movement  0.75kW
  • coring 0.2kw
Total: 8.45kW (11.3Hp)
This is a reference specifications.
